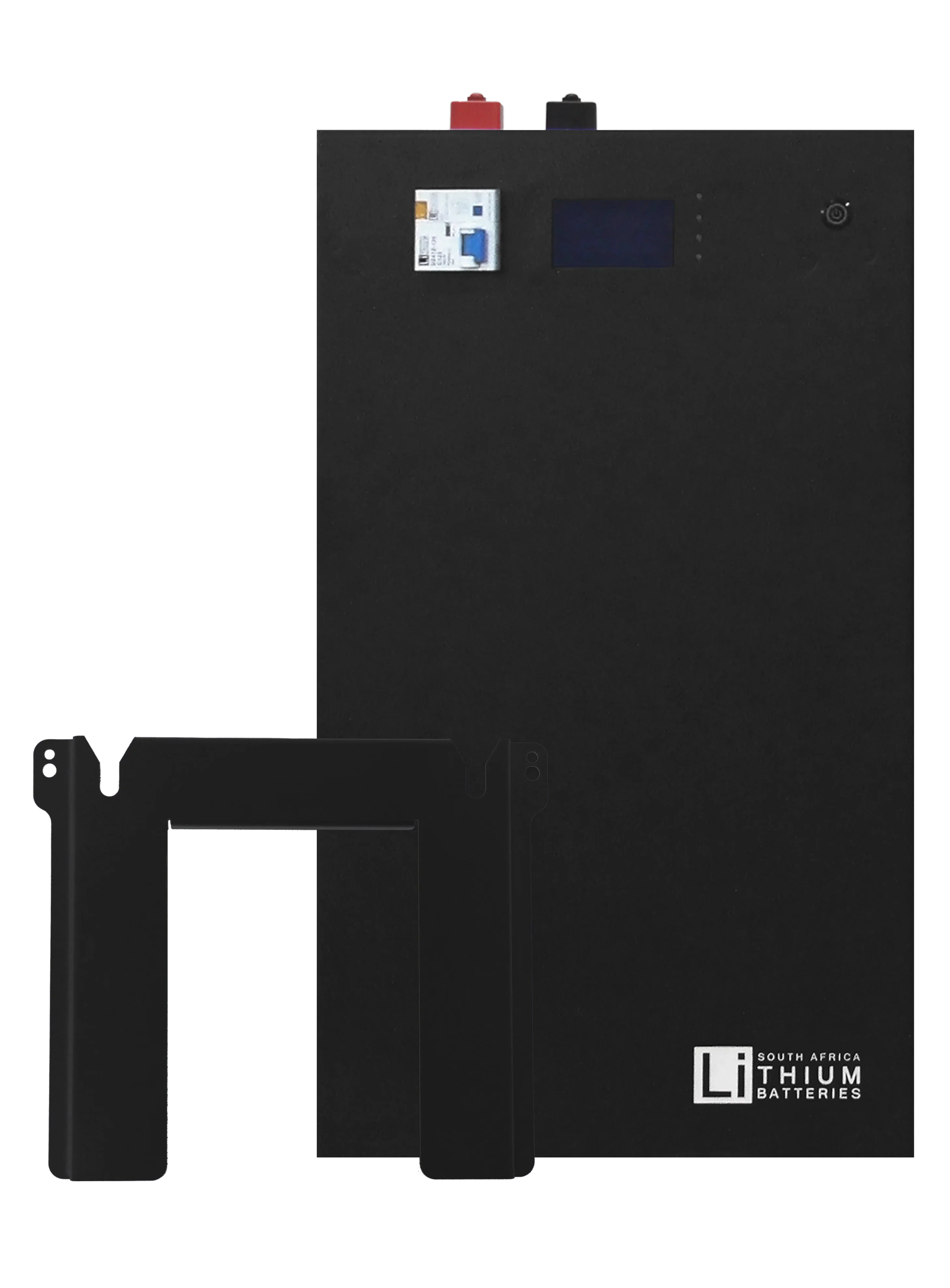

25.6v 104Ah 2.6kWh LiFePO4 Lithium Iron Phosphate Wall Mount Solar UPS Battery

Meet the LBSA 25.6V 2.6kWh LiFePO₄ Wall Mount Battery – a compact, reliable energy storage solution designed for smaller solar and UPS systems. Engineered and assembled by Lithium Batteries South Africa, this unit offers safe, long-lasting power with a space-saving wall-mounted design. Built on LiFePO₄ technology, it delivers exceptional cycle life, stable performance, and is ideal for residential backup power and small-scale solar applications.

DETAILS

Discover what makes the LBSA 25.6V 2.6kWh LiFePO₄ Wall Mount Battery the smart choice for home and backup energy storage. Below, you'll find key specifications, performance details, and compatibility information to help you select and integrate the perfect low-voltage solution for your system with confidence.

BULK + ABSORPTION    28V
FLOAT    28V
LOW VOLTAGE CUT-OFF    22V
CHARGE FOR PARALLEL UNITS    (50A*UNITS IN PARALLEL*)/2
DISCHARGE FOR PARALLEL UNITS    (100A*UNITS IN PARALLEL*)

WARRANTY

10 YEAR WARRANTY / 4500 CYCLES (9000 CYCLES ON BMS DISPLAY)
(20 - 30 YEAR SERVICE LIFE)

MODULE BASIC PARAMETERSLearn more about the essential parameters of the LBSA 25.6V 2.6kWh LiFePO₄ Battery. Explore its electrical characteristics, protective features, and operating performance to ensure your solar or UPS setup is efficient, reliable, and ready for long-term energy independence.

MODULE NOMINAL VOLTAGE (V)    25.6V
MODULE NOMINAL CAPACITY (Ah)    104Ah
MODULE NOMINAL POWER (kWh)    >2.6kWh
DIMENSIONS (mm)    630mm x 345mm x 137mm
WEIGHT (Kg)    27.5KG
DISCHARGE CUT-OFF VOLTAGE (V)    22V
CHARGE VOLTAGE (BULK + ABSORPTION) (V)    28V
MAX DISCHARGE CURRENT (A)    100A
RECOMMENDED CHARGE CURRENT    50A
COMMUNICATION INTERFACE    CAN
CONFIGURATION    8S
OPERATING TEMPERATURE    0 - 50 ℃ (CHARGE)
-20 - 50 ℃ (DISCHARGE)
-20 - 55 ℃ (STORAGE)
CELL CHEMISTRY    LITHIUM IRON PHOSPHATE (LiFePO4)
CYCLE LIFE    ≥80% CAPACITY STATE AFTER 4800 CYCLES AT 0.5C, 25℃, 100% DOD
IP LEVEL    IP 20
