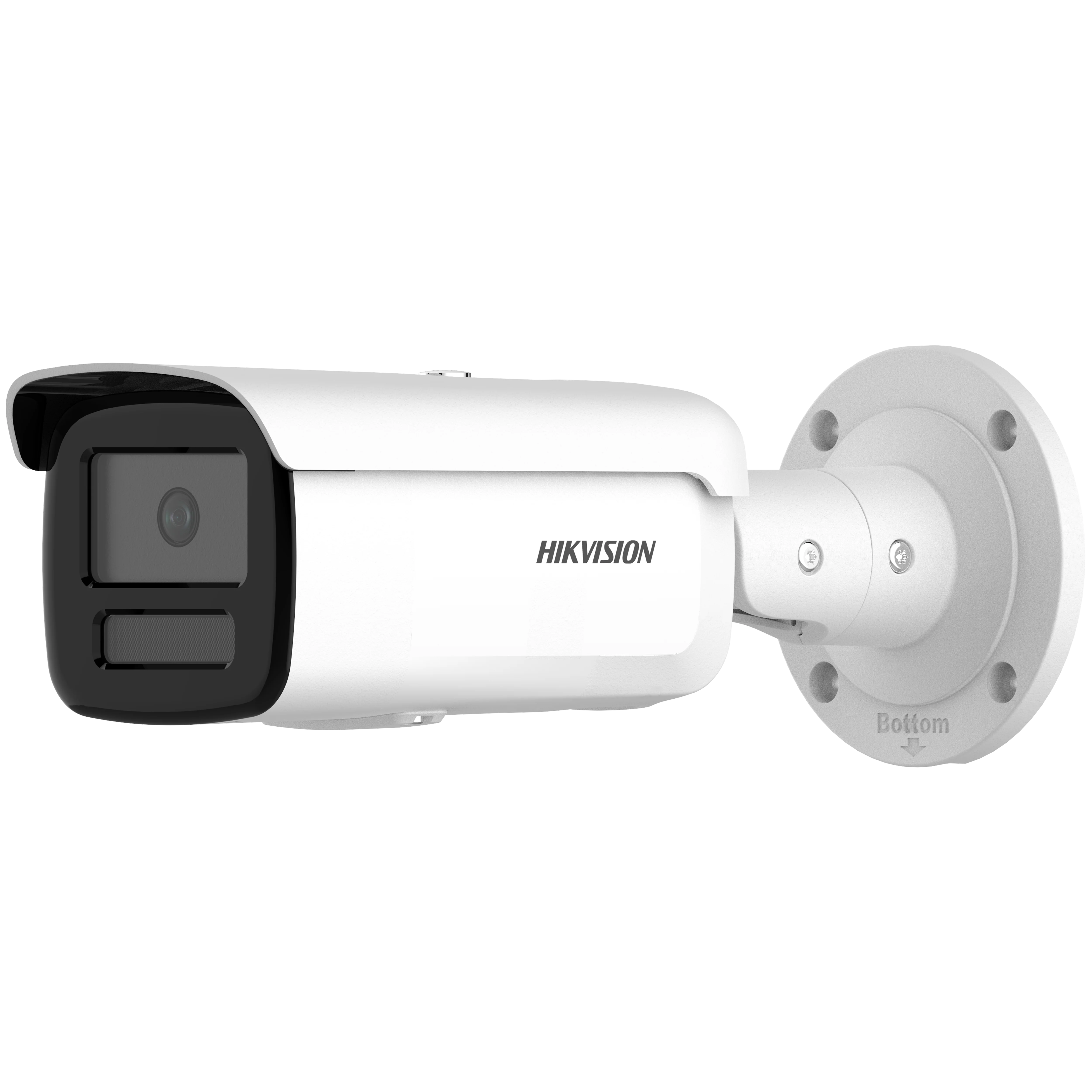

AcuSense 4MP Bullet Camera – 2.8mm Lens, 60m IR, 120dB WDR, F1.0, 12VDC/PoE

The AcuSense 4MP Bullet Camera delivers sharp, high-quality surveillance with advanced imaging and intelligent detection. Featuring DarkFighter technology, it provides excellent low-light performance, while 120 dB true WDR ensures clear images even in strong backlight. The camera can accurately detect human and vehicle targets, making it ideal for outdoor security. With H.265+ video compression, IP67 weather resistance, and flexible installation options, it’s a reliable solution for any monitoring environment.

Features

• 4 MP resolution for clear, detailed video

• Superior low-light performance with DarkFighter technology

• 120 dB true WDR for balanced images in challenging lighting

• Intelligent human and vehicle detection using deep learning

• Efficient H.265+ video compression

• Weatherproof and dustproof (IP67)

• Supports PoE for flexible installation

Specifications

Camera & Lens

• Image Sensor: 1/3" Progressive Scan CMOS

• Max Resolution: 2688 × 1520

• Minimum Illumination: Color 0.001 Lux, B/W 0 Lux with IR

• Lens: Fixed focal 2.8 mm (standard), 4 mm optional

• Aperture: F1.0

• Field of View: 2.8 mm – 100.2° H / 54.7° V / 119.7° D

• Depth of Field: 2.8 mm: 1.9 m–∞, 4 mm: 2.5 m–∞

• Angle Adjustment: Pan 0–360°, Tilt 0–90°, Rotate 0–360°

Illumination

• IR Range: 2.8 mm up to 60 m, 4 mm up to 80 m

• IR Wavelength: 850 nm

• Smart IR: Yes

Video & Image

• Frame Rate: Up to 25/30 fps (2688 × 1520)

• Compression: H.265/H.264/H.265+/H.264+

• WDR: 120 dB

• Image Enhancement: BLC, HLC, 3D DNR

• Privacy Mask: 4 programmable zones

Network & Storage

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, SMTP, SNMP, IPv4/IPv6

• Storage: MicroSD (up to 512 GB), NAS supported

• Live View: Up to 6 channels

• Security: Password protection, HTTPS, IP filtering, TLS 1.1/1.2

General

• Power: 12 VDC ±25%, PoE IEEE 802.3af, max 12 W

• Material: Full metal body and bracket

• Dimensions: 286.7 × 93.1 × 91.2 mm

• Weight: 1085 g

• Operating Temperature: -30 °C to 60 °C

• Certifications: CE, UL, CB, EMC, RoHS
