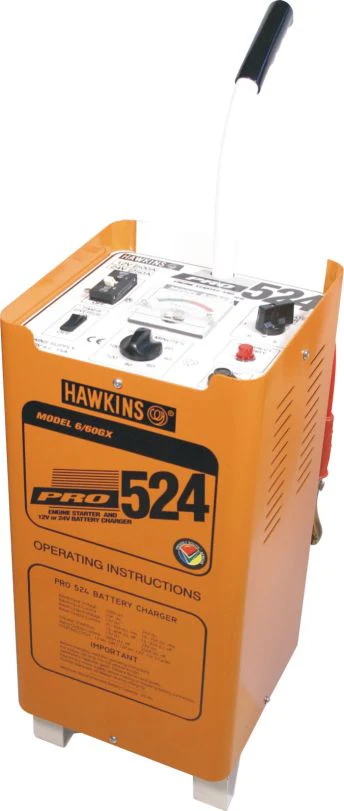

BATTERY CHARGER – PRO 524

Is a trolley, type 60A 12V / 24V manual battery charger

or 500A engine starter

Voltage selection is made by connecting the charging

cable to either the 12V or 24V stud

Current can be varied by a rotary switch on the front panel

Unit incorporates a reverse polarity light to indicate incorrect

connection to the battery

Has an engine start button that has to be pressed when the

unit is used as a jump starter

Built in timer is handy for charging at high currents for short periods.

Transformer is protected by an automatic reset thermal circuit breaker

The Pro Series of chargers were designed in compliance with IEC 335-2-2

has a two year limited warranty against defects in materials and workmanship

NOT RECOMMENDED FOR SEALED BATTERIES

Code Rating

HAW6-60GX Input Voltage: 230Vac Output Voltage:12V 68A or 24V 91A
