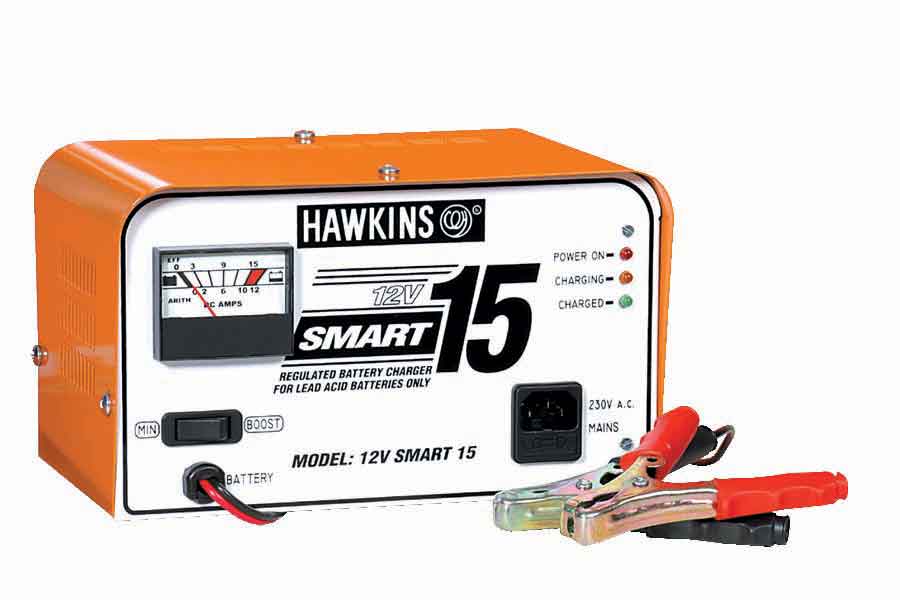

BATTERY CHARGER – SMART 15 12V

Is a 2 stage automatic charger

Switch on the front panel selects either 5A or 10A charge current

Electronic control card regulates the output voltage thereby

preventing overcharging

Potential free clamps prevents sparking when connecting to the battery

Charger requires a minimum of 10V to be present on the battery before

it will start charging

Battery leads are protected by a battery fuse located under the charger

Charger can be left connected to the battery unattended for extended periods

Input to the charger is protected by a replaceable mains fuse

The Smart Series of chargers were designed in compliance with IEC 335-2-2

has a two year limited warranty against defects in materials and workmanship

RECOMMENDED FOR SEALED & VENTED BATTERIES

Code Rating

HAW15A Input Voltage: 230Vac Output Voltage: 12V at 10A
