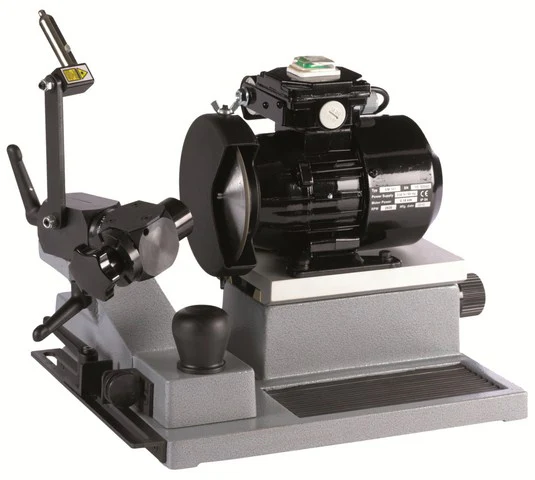

EUROBOOR CUTTER SHARPENER PLUS DISC ERM100/3

Sharpening Machine For HSS Cutters

250W / 28kg

The Euroboor ERM.100/3 sharpening machine sharpens HSS cutters between 12mm, 1/2 inch and 44mm, 1 3/4 inch diameter in cutting depths between 25mm, 1 inch and 55mm, 2 3/16 inch with great ease, The laser guided cutter alignment ensures correct positioning of the cutting edge to the wheel where the easy angle adjustments makes alignment to the original geometry easy and simple

Features:

For HSS cutters from 12 – 44mm diameter

For HSS cutters in cutting depths of 25 – 55mm

Easy angle adjustment

Simple alignment to original geometry

Laser guided cutter alignment

Motor positioning

Including CBN grinding wheel

CODE: HTC-ERM100

BARCODE: 6008075018993

HEIGHT: 35.0cm

LENGTH: 54.0cm

WIDTH: 35.5cm

WEIGHT: 32.85kg

MOTOR POWER: 250W

NOISE EMISSION: Less than 70 dBa

GRINDING DISC: 125mm

WHEEL BORE: 25mm

SHAFT BORE: 19.05mm Weldon

SPEED – NO LOAD: 2 800 rpm

VOLTAGE: 110 – 120V / 60Hz

220 – 240V / 50 – 60Hz
