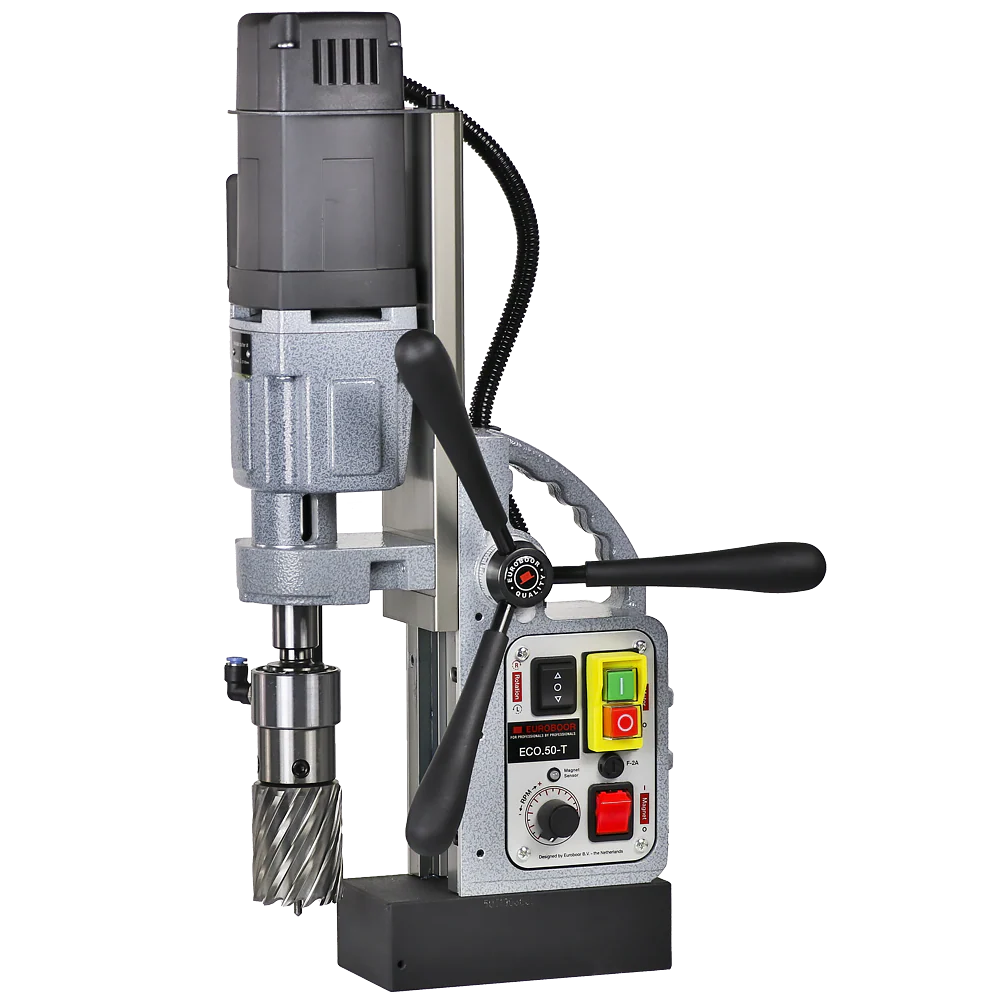

EUROBOOR MAG DRILL 50MM TAPPING FUNCTION

Magnetic drilling machine, 50 mm, 220 V

Magnetic drilling machine, annular cutters maximum diameter 50 millimeter, power supply tension 220 - 240 Volt, power supply frequency 50 - 60 Hertz, rotation direction bidirectional

Features:

Overload protection

Two way magnet

Overheat protection

Magnet LED indicator

Tapping

Adjustable speed

Right / left rotation

CODE: HTC-ECO50-T

BARCODE: 8718375390115

HEIGHT: 54.0cm

LENGTH: 32.0cm

WIDTH: 21.0cm

WEIGHT: 13.50kg

ANNULAR CUTTING: 12 – 50mm diameter

TWIST DRILLING – WELDON: 1 – 23mm diameter

COUNTERSINKING: 10 – 55mm diameter

TAPPING: M3 – M20

STROKE: 170mm

MAGNET – L X W X H: 170 x 85 x 48mm

MAGNETIC FORCE: 1 850kg

MOTOR POWER: 1 250W

TOTAL POWER: 1 375W

SPEED – NO LOAD: (i) 100 - 280 rpm, (ii) 185 - 530 rpm

SPEED – LOAD 1250W, 11.4 A): (i) 250 rpm, (ii) 460 rpm

SPINDLE (WELDON): MT2 19.05mm

VOLTAGE: 110 – 120 V / 60 Hz

220 – 240 V / 50 – 60 Hz
