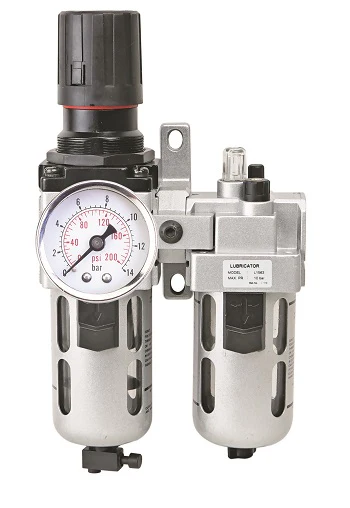

FILTER – REGULATOR-LUBRICATOR

The filter -regulator combination and lubricator are attached in series using spacers & piping adapters, which makes the 2 components easily removable/ mountable without disturbing the pipe line. Comes complete with a wall mounting bracket. Air filter is used to separate dust, dirt, moisture & other contaminants from compressed air. Regulators have a non raising press to lock adjusting knob for locking at any set pressure. Lubricators are used to feed lubricants to pneumatic equipment’s. These maintain a constant oil -to-air density over a wide range of flow.

• Die cast aluminum head

• Polycarbonate bowl with steel guard

• Head fitted with oil drop indicator

• Oil drop controller

• Oil filling plug

• Sintered bronze filtering element

• Flow rate 53 CFM 1500 LPM

CODE: DESCRIPTION SIZE

GRO8116 FILTER – LUBRICATOR-LUBRICATOR 1/4 INCH
