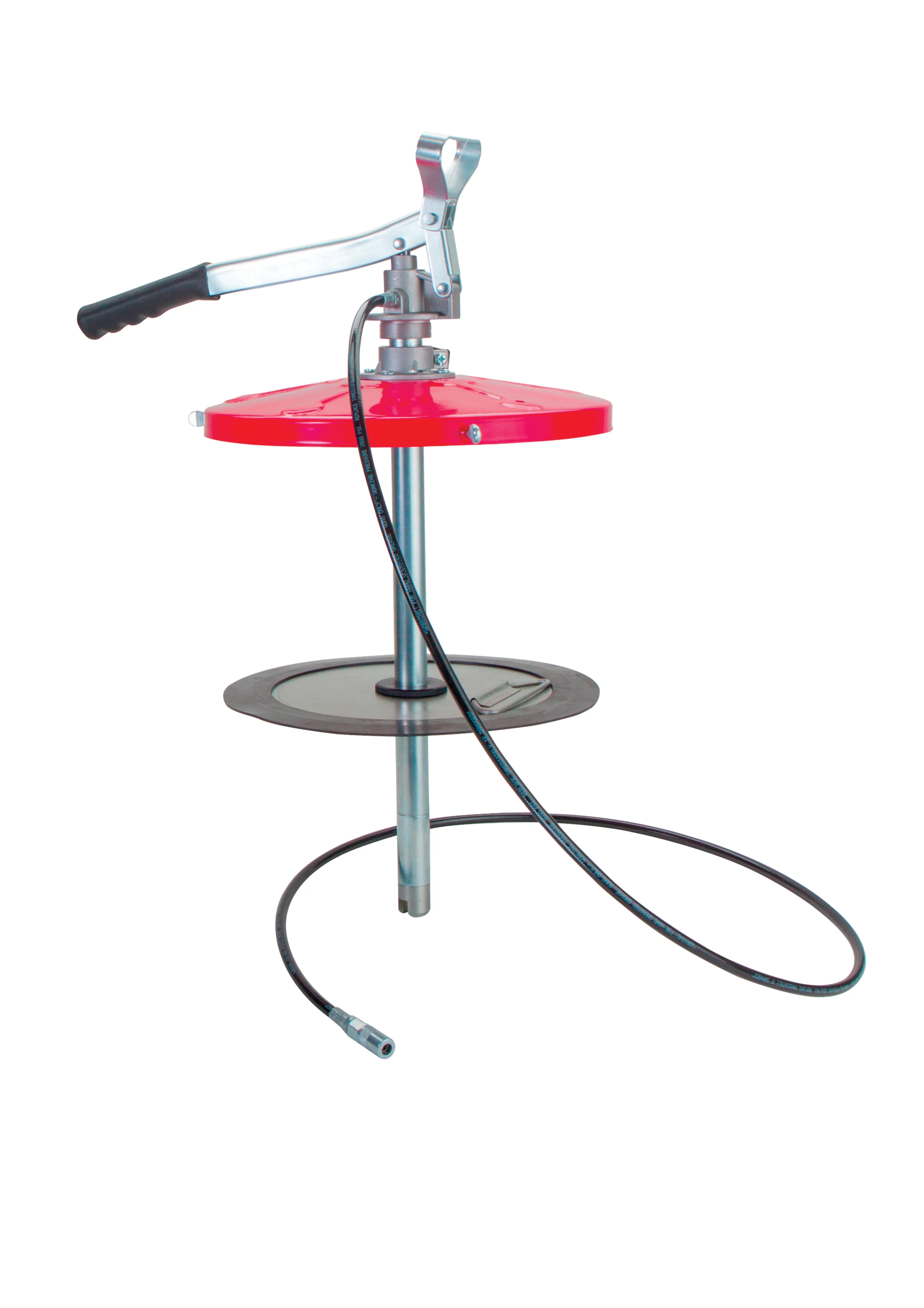

GROZ GREASE PUMP 20KG GFP/HP03-SPL/RD2

An easy and portable high pressure hand operated grease pump

Useful for clean greasing of machinery, equipment, trucks and cars

Provides high pressure greasing, where power is not available or when an air operated grease pump cannot be afforded

Steel construction with aluminium cast head and solid steel pumping chamber

Pump includes:

Lift handle, Drum Cover

Rubber Lining Follower plate

48 inch, 1220 mm flexible grease hose fitted with professional 4 jaw coupler

Model HPG-10 additionally includes a 10 kg, 22 lb steel grease bucket

Specifications:

Develops: Up to 3 500 PSI, Up to 240 Bar

Maximum Output: 1 oz per 19 strokes, 1.5g per stroke

GFP/HP-03 For use with 20kg, 25 to 50 lb grease pails

CODE: GRO2172

BARCODE: 8901486442334

HEIGHT: 8.0cm

LENGTH: 51.5cm

WIDTH: 32.0cm

WEIGHT: 3.91kg

PAIL CAPACITY: 20kg, 25 to 50 lb

PUMP LENGTH BELOW DRUM COVER: 348mm

DRUM COVER DIAMETER: 310mm

TYPE OF FOLLOWER PLATE: Rubber Lining

FOLLOWER PLATE DIAMENSIONS

(O.D. STEEL END): 9-1/2 inch

(O.D. PLATE): 11-11/32 inch

(I.D. GROMMET): 1 inch
