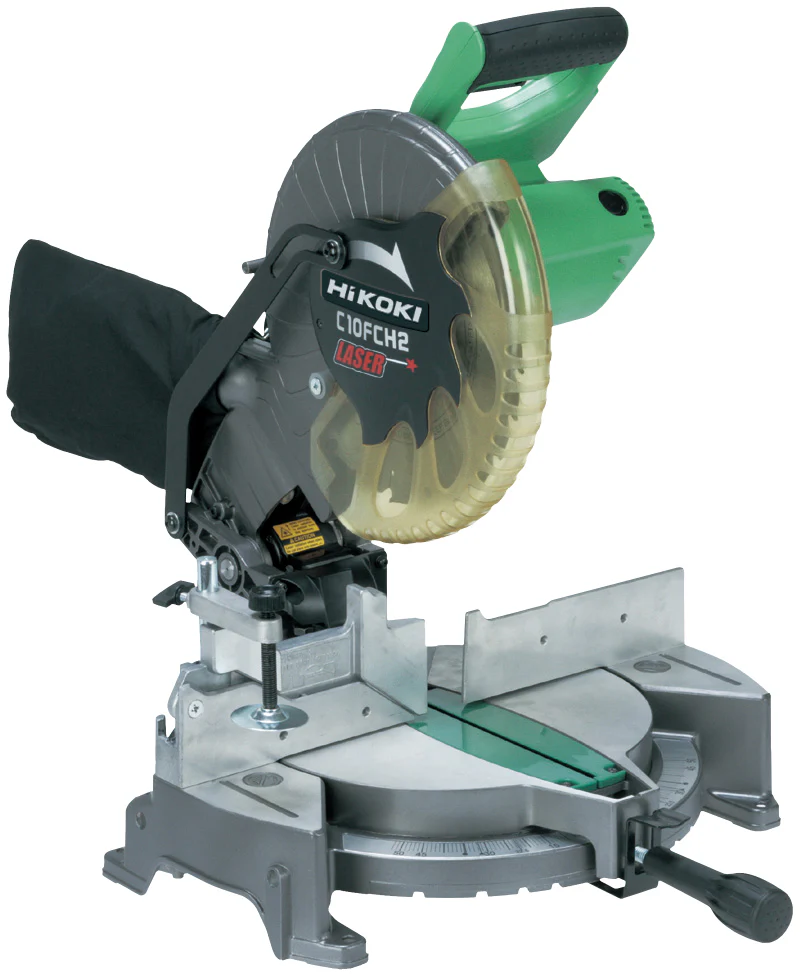

HIKOKI MITRE SAW 255MM 1520W LASER GUIDE

Compound Mitre Saw 255mm 1520W With Laser Guide

Features

Laser Marker : Guide system on cut line

Thumb actuated positive miter stops for quick and easy adjustment

Soft grip handle

Equipped with chip deflector

Pivoting Sub-Fence for supporting larger stock

Specifications

Capacity: Blade Dia. 255mm
(HxW) Cross Cut: 0 degrees 59x144mm or 89x101mm
Mitre Cut: 45 degrees 59x102mm or 89x70mm
Mitre Cut: 52 degrees 59x89mm or 89x54mm
Bevel Cut: 45 degrees 41x144mm
Compound:
Mitre 45 degrees and Bevel 45 degrees 41x102mm
Power Input 1 520W
No Load Speed 5 000 per minute
Mitre Angle: Right 0 – 52 degrees
Left 0 – 52 degrees
Bevel Angle: Left 0 – 45 degrees
Positive Angle Stop 0, 15, 22.5, 31.6 and 45 degrees

Dimensions 460 x 628 x 561mm
Weight 11.6kg
Standard Accessories Blade, Dust Bag, Wrenches,

Sub Fence, Vise Ass’y

CODE: HTC-C10FCH2

BARCODE: 4966376290598

HEIGHT: 40.5cm

LENGTH: 52.5cm

WIDTH: 35.0cm

WEIGHT: 11.6kg

PACKAGING: Box
