Hoseclamp Uniclips Ms Gm2 6 13 Mm

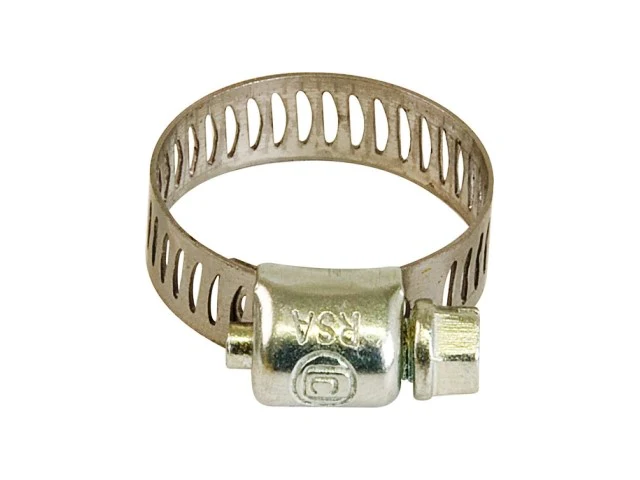

HOSECLAMP UNICLIPS MILD STEEL GM2 6-13MM (ONLY SOLD PER BOX OF 10)
Lightweight ‘Econ’ or Micro Hose clamps are ideal for smaller diameter and lighter duty applications such as air & fuel line hoses
They are available in a standard range which has a 400 series Stainless Steel band with zinc plated carbon steel screw and housing and also in full stainless steel
The clamp’s design has a construction that is free of spot welding and therefore a reduced potential for corrosion
The narrower 8mm perforated band permits relatively higher sealing pressure with less torque than the standard 12mm band-width clamps
With the low profile and narrow one-piece housing, easy installation in difficult areas is possible
The slotted 6mm hex head screw allows for screw-driver or socket installation
Specifications:
The GM Series Economy Econ Micro Clamps
Ideally suited to general and automotive applications
Consists of a 400 series stainless steel band
Zinc electroplated carbon steel housing
Zinc electroplated, case hardened and slotted screw
CODE: USC0004
BARCODE: 6009619070101
HEIGHT: 5.0cm
LENGTH: 5.5cm
WIDTH: 5.5cm
WEIGHT: 0.06kg
NOMINAL WORKING RANGE – DIAMETER
MIN.: 6mm, 7/32 in
MAX.: 13mm, 1/2 in
TORQUE NM. SABS: 2.5Nm
