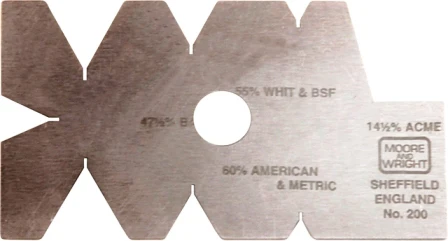

SCREW CUTTING GAUGE

MOORE & WRIGHT

Used for setting correct cutting angles for thread cutting lathe tools.

Traditional Engineer’s screw cutting gauge

Suitable for most Metric and Imperial thread forms

Accurately milled angles for precise evaluation of thread forms

CODE ANGLE THREAD FORM

MAW200 60º SI, ISO US Std

55º Whitworth

47.5º British Association (BA)

14.5º ACME
