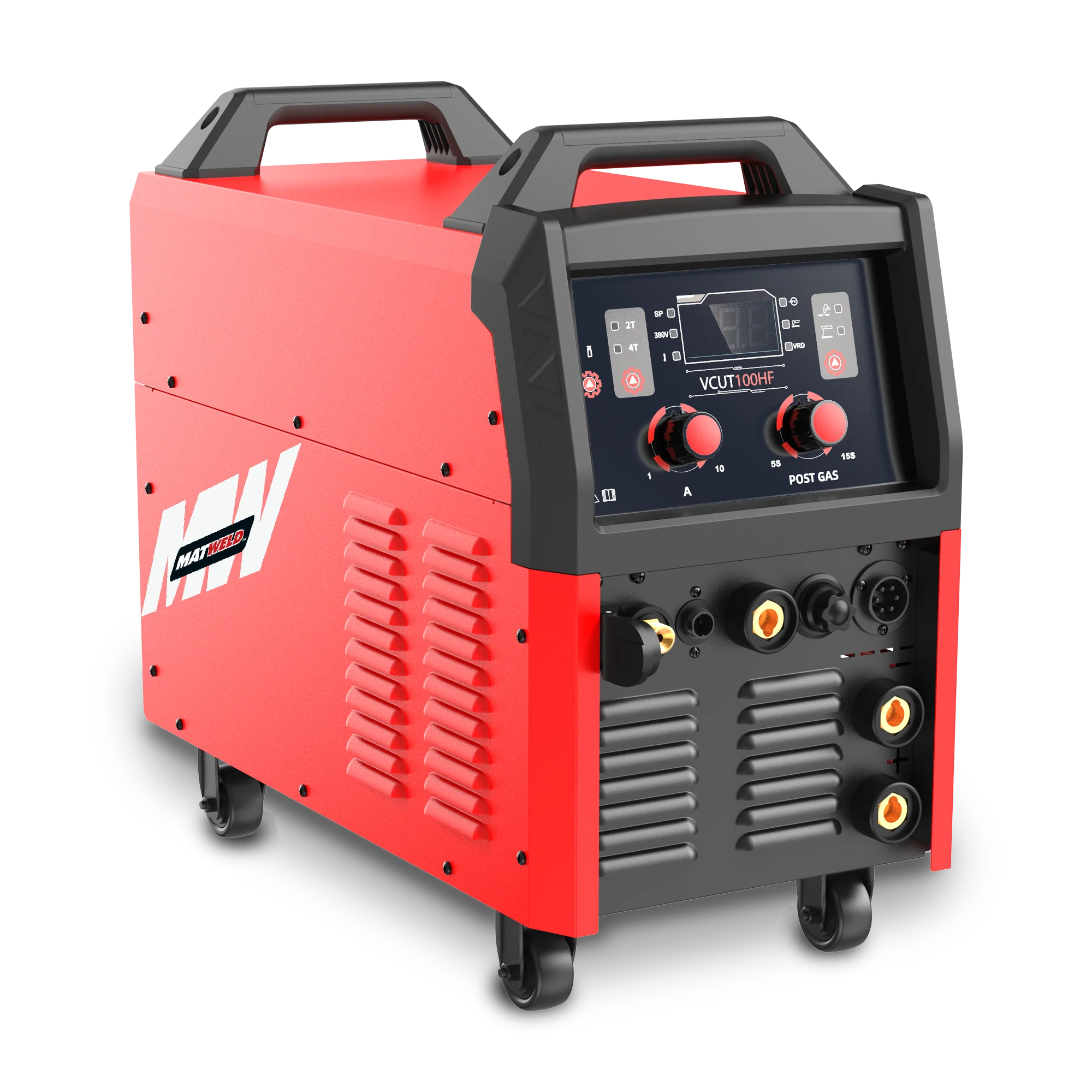

MATWELD WELDER PLASMA PROFESSIONAL CUT 100H 380V

Built in Regulator

Supplied with Filter

Technical Data

Rated Input Voltage 3P - 380V

Frequency 50/60HZ

Rated Input Power - KW 14.1

Rated Input Current - A 23.1

Duty Cycle - 40°C 10min 60% 100A

No Load Voltage - V 300

Welding Current Range - A 30 - 100

Efficiency % ≥80

Power Factor 0.93

Protection Class IP23

Cutting Thickness 30mm

Insulation Class H

N.W. 28.5Kgs

G.W. 33Kgs

Packing Size 64 x 44 x 53.5cm

Accessories 5M P80 Cutting Torch,

3M Earth Clamp

CODE: MAT9215

BARCODE: 704129501119

HEIGHT: 62.7cm

LENGTH: 65.1cm

WIDTH: 39.2cm

WEIGHT: 33.0kg
