SYKES PULLER KIT INTERNAL AND EXTERNAL BEARING 155900

Hydraulic 1500 series

Removes gears, bearings, pulleys and sprockets

Wide range of automotive and industrial applications

Powered by 1500 series hydraulic ram

Safe and easy to use

8 tonnes of force with minimum effort

Easy to adjust

Non-twisting for improved stability

Supplied with nose piece for use on centered shafts

Self centering and self locking

Redesigned legs, improving strength

The separator is a versatile tool where a long reach is required to draw a bearing from a shaft

The tapered edges of the bearing separator provide all round support and can fit behind bearings where normal puller legs cannot gain access

Makes 8 different twin/triple leg pullers, plus heavy duty bearing separator kit and internal extractor kit

Supplied in metal case

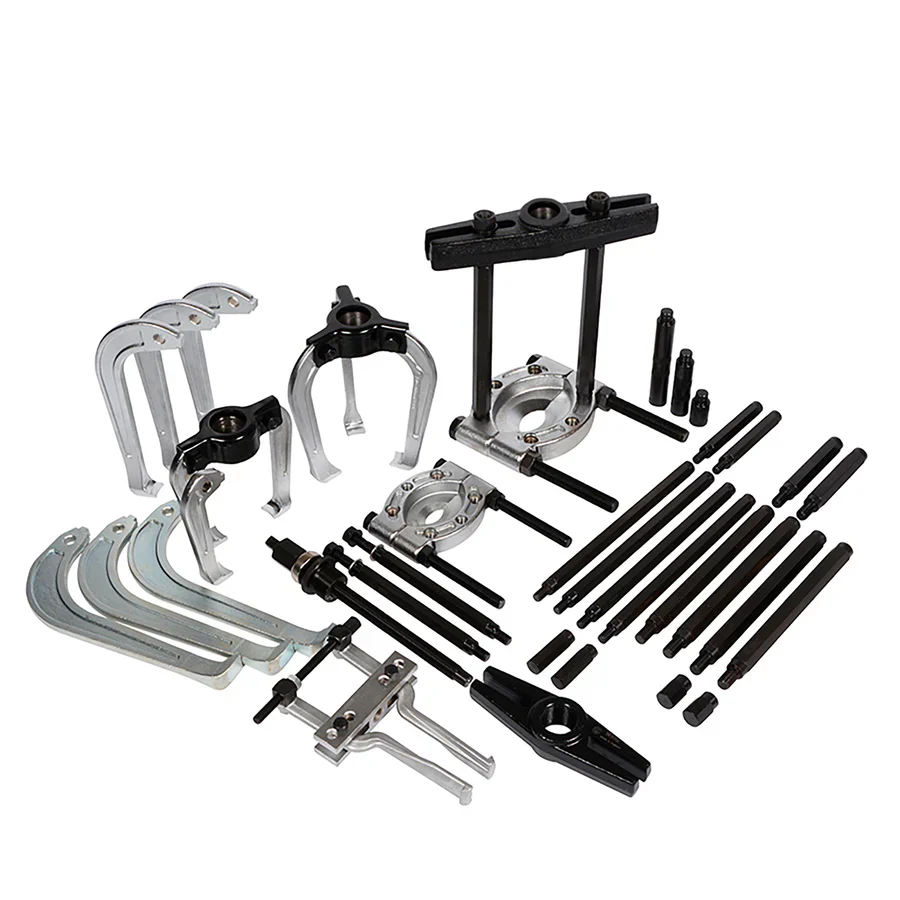

Contents:

1500 Series Hydraulic Ram With Nose Piece

15241200 1 x Twin Head

15341300 1 x Triple Head

15242200 1 x Ram Extension - 50mm

15262400 1 x Ram Extension - 100mm

15272600 1 x Ram Extension - 150mm

15242400 3 x Legs - 100mm

15262600 3 x Legs - 150mm

15282800 3 x Legs - 200mm

15292900 3 x Legs - 250mm (Extra Wide)

19311200 1 x Twin Beam

09510000 1 x Separator 20-105mm

09311500 2 x Main Rods

09311900 4 x Extension Rods

09312300 2 x Extension Rods 5 inch

19321200 1 x Twin Beam

09520000 1 x Separator 35-145mm

09321500 2 x Main Rods

09321900 4 x Extension Rods

09322300 2 x Extension Rods 5 inch

09350000 1 x Internal Race Extractor

09311100 1 x Forcing Screw C/W Nut

09312100 1 x Thrust Race

09312200 1 x Convertor

09312000 2 x Protectors

09322000 2 x Protectors

CODE: SYK155900

BARCODE: 5012737796057

HEIGHT: 16.0cm

LENGTH: 42.5cm

WIDTH: 40.0cm

WEIGHT: 41.22kg

SPREAD MINIMUM TO MAXIMUM: 20 – 250mm

REACH MAXIMUM: 250mm

EXTERNAL SPREAD MIN TO MAX: 20 - 145mm

EXTERNAL REACH MAXIMUM: 876mm

INTERNAL REACH MINIMUM: 40 – 150mm
