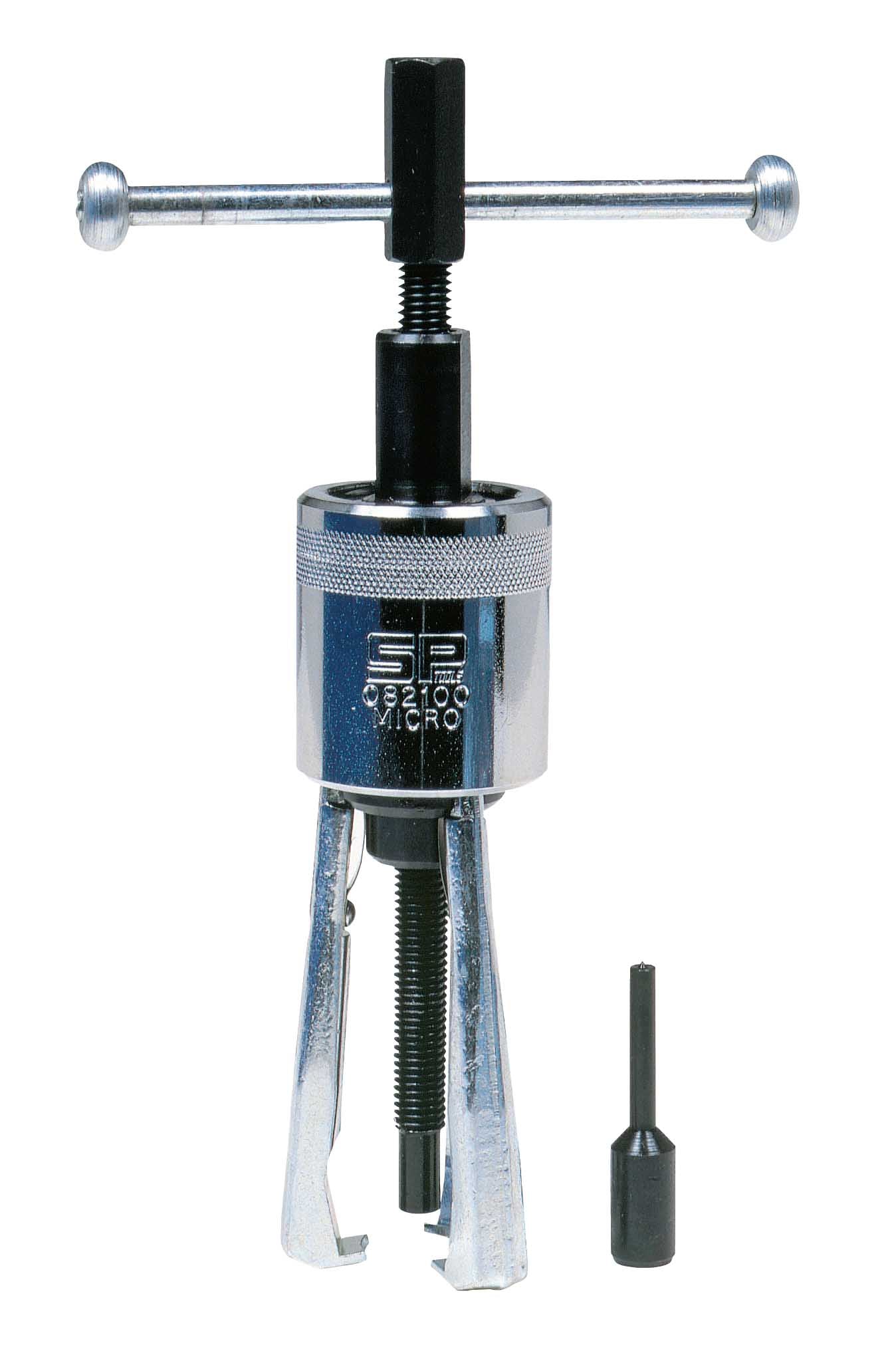

SYKES PULLER MICRO 19-45 FIT

Sykes-Pickavant pullers are manufactured to a very high specification and subjected to rigorous testing - far exceeding their stated capacities.

The legs and beams are drop forged from high quality steel and then heat treated for extra strength and durability

Fast Fit Micro Puller

For rapid removal of small bearings

Covers a wide range of automotive and engineering applications including: alternators/generators, domestic appliances, power tools and pumps

Self-centering force screw with T bar and 13mm hexagon drive

Drop forged legs with independent leaf springs

Securing collar tightens under load for positive, non slip pulling action

Suitable for ISO referenced bearings

1 tonne capacity

Dimensions:

Spread - 19-45mm

Reach - 73mm

Contents:

08210300 - 1 x Forcing Screw

08210400 - 1 x Nose Piece Extension

08210570 - 3 x legs

CODE: SYK082150

BARCODE: 5012737976447

HEIGHT: 16.5cm

LENGTH: 23.5cm

WIDTH: 14.0cm

WEIGHT: 1.53kg

SPREAD MINIMUM TO MAXIMUM: 19 - 45mm

REACH MAXIMUM: 73mm
