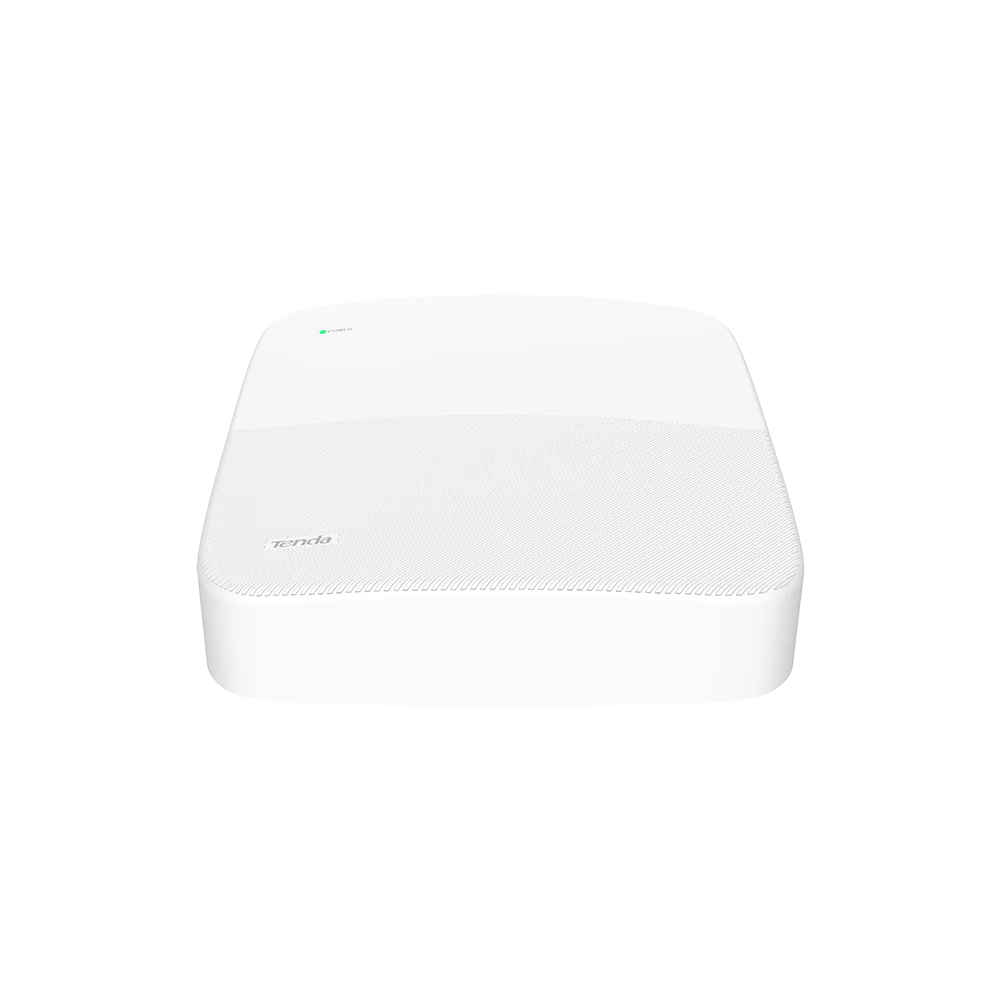

Tenda 4 Channel PoE HD Network Video Recorder

N6P-4H PoE HD Network Video Recorder supports PoE power supply, plug and play, 4K UHD recording and output, channel cloud storage, H.265 high-performance video compression and monitor video viewing on TDSEE App. It is suitable for such scenarios as single-family houses, shops, restaurants, offices, factories and farms, providing you efficient and convenient monitoring management

4K UHD Monitoring Image Captures Clear and Delicate Monitoring Details

4K UHD camera connected and 4K high-definition HDMI output with up to 3840 x 2160 resolution provides you clear images with more details even when zoomed.

Plug and Play Without Further Configuration

Network Video Recorder will automatically search and add the camera connected to the PoE port,then you can see monitor images without further configuration.

Technical Specifications

Weight	510 g
Dimensions	375 × 585 × 385 mm
IP Video Input	4-ch
IP Video Resolution	Up to 8MP
Input Bandwidth	60 Mbps
Audio Input	1-ch, RCA (2.0 Vp-p, 10kΩ)
HDMI Output	1-ch, 4K(3840×2160)/30Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
VGA Output	1-ch, 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output
Output Bandwidth	60 Mbps
Weight (Without HDD)	510g (1.12lb)
Dimension	200 mm × 200 mm × 48 mm (7.9 ”× 7.9 ” × 1.9 ”)
